MTG series plastic enclosure
MTG series plastic enclosure (metal latch hinge type)
With high strength ABS, PC refractories and UV added material, the enclosure has beautiful appearance, high plasticity and ruggedness. It is Suitable for terminal boxes, distribution panels, instrument boxes, electrical equipment boxes and control boxes, simple and easy to use.
Temperature range:-40 to +120°C ABS:Acrulonitrile Butadiene Styrene
PC:Poly Carbonate

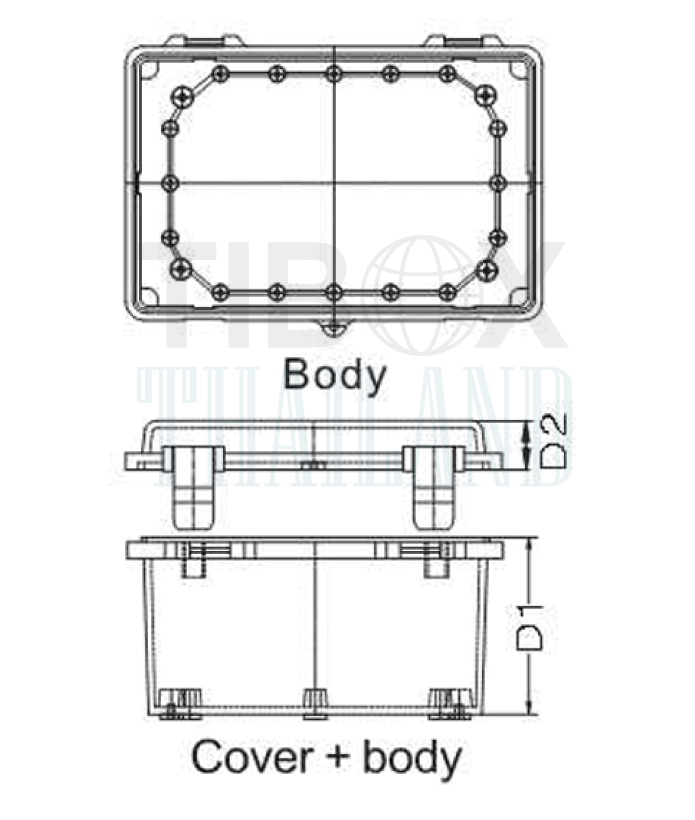

| Metal latch+Hinge type | Dimension(mm) | Mounting plate | installation size (mm) | ||||
| Grey door | Clear door | WxHxD | D1+D2 | Plastic | Metal | W3 | H3 |
| TJ-MG-2227T | TJ-MG-2227T | 225X275X120 | 100+20 | / | TJ-2227 | 238 | 188 |
| TJ-MG-2030-ST | TJ-MJ-2030-ST | 200X300X150 | 120+30 | TJ-2030P | TJ-2030 | 271 | 171 |
| TJ-MG-2030T | TJ-MT-2030T | 200X300X180 | 130+50 | TJ-2030P | TJ-2030 | 271 | 171 |
| TJ-MG-3030T | TJ-MT-3030T | 300X300X180 | 130+50 | TJ-3030P | TJ-3030 | 269 | 269 |
| TJ-MG-3040T | TJ-MT-3040T | 300X400X180 | 130+50 | TJ-3040P | TJ-3040 | 371 | 271 |
| TJ-MG-3040-1T | TJ-MT-3040-1T | 300X400X210 | 160+50 | TJ-3040P | TJ-3040 | 371 | 271 |
| TJ-MG-4050T | TJ-MT-4050T | 400X500X200 | 150+50 | TJ-4050P | TJ-4050 | 472 | 372 |
| TJ-MG-4060T | TJ-MT-4060T | 400X600X220 | 170+50 | TJ-304PX2 | TJ-4060 | 573 | 373 |
