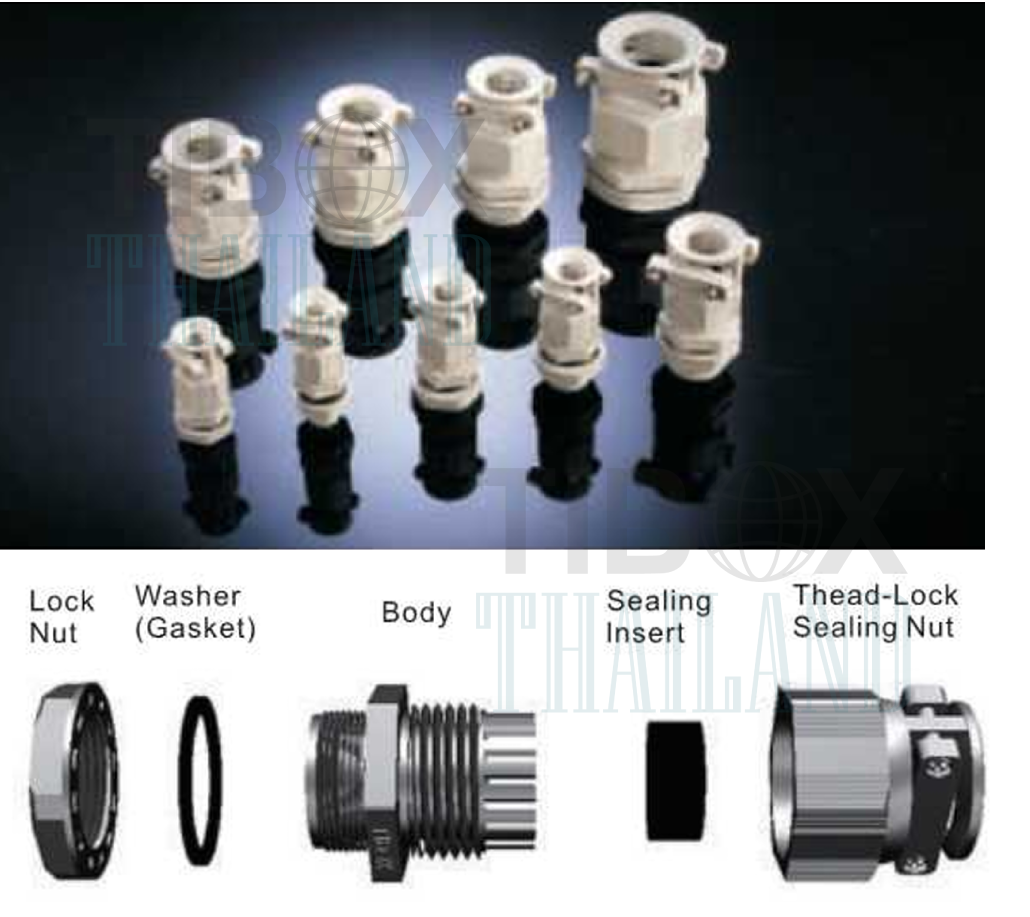

M - Length Nylon Cable Gland With Stretching Resistance

Material : PA (NYLON), UL94 V-2

Colour : Gray, Black

Protection degree : IP66

Working temperature : -40˚C to +100˚C

Feature :

Prevention of pressure increase inside the enclosure. Limting of temperature increase by the air circulation. Added flexibility for maintainenace. Prevention of accidental water suction into the system. Prevention of exposure to hot, humid, compressed gases.

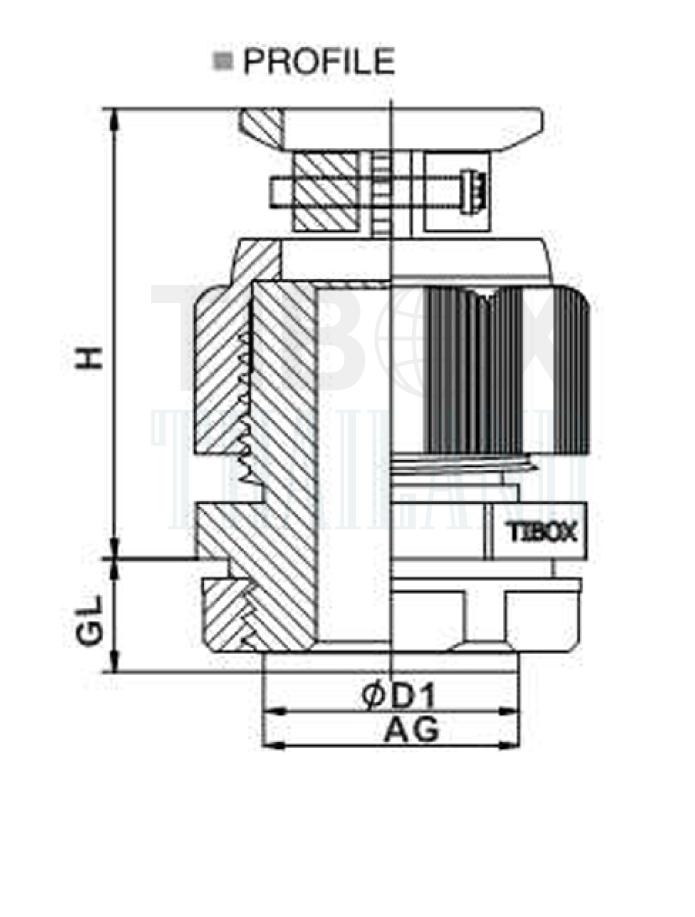

Thread D1	mm	AG mm	GL mm	H mm	mm	Panel Mounting Hole(mm)	Part No. Grey
M12 x 105	3 - 6.5	12	8	36	15	12 - 12.3	KL-M12-6-8
M12 x 1.5	2 - 5	12	8	36	15	12 - 12.3	KL-M12-5-8
M16 x 1.5	4 - 8	16	8	36	19	16 - 16.3	KL-M16-8-8
M16 x 1.5	2 - 6	16	8	36	19	16 - 16.3	KL-M16-6-8
M20 x 1.5	6 - 12	20	9	38	24	20 - 20.3	KL-M20-12-9
M20 x 1.5	5 - 9	20	9	38	24	20 - 20.3	KL-M20-9-9
M25 x 1.5	13 -18	25	11	41	33	25 - 25.3	KL-M25-18-11
M25 x 1.5	9 - 16	25	11	41	33	25 - 25.3	KL-M25-16-11
M32 x 1.5	18 - 25	32	11	52	42	32 - 32.3	KL-M32-25-11
M32 x 1.5	13 - 20	32	11	52	42	32 - 32.3	KL-M32-20-11
M12 x 1.5	3 - 6.5	12	15	36	15	12 - 12.3	KL-M12-6-15L
M12 x 1.5	2 - 5	12	15	36	15	12 - 123	KL-M12-5-15L
M16 x 1.5	4 - 8	16	15	36	19	16 - 16.3	KL-M16-8-15L
M16 x 1.5	2 - 6	16	15	36	24	16 - 16.3	KL-M16-6-15L
M20 x 1.5	6 - 12	20	15	38	24	20 - 20.3	KL-M20-12-15L
M20 x 1.5	5 - 9	20	15	38	24	20 - 20.3	KL-M20-9-15L
M25 x 1.5	13 - 18	25	15	41	33	25 - 25.3	KL-M25-18-15L
M25 x 1.5	9 - 16	25	15	41	33	25 - 25.3	KL-M25-16-15L
M32 x 1.5	18 - 25	32	15	52	42	32 - 32.3	KL-M32-25-15L
M32 x 1.5	13 - 20	32	15	52	42	32 - 32.3	KL-M32-20-15L
