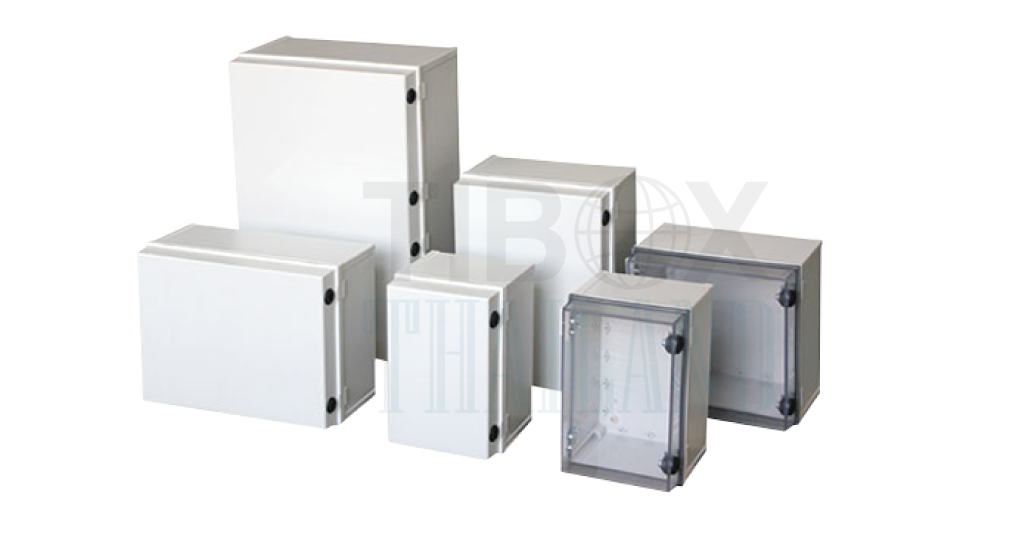

KG Series Plastic Enclosure (Lock Type)
Material : ABS, PCColour : Gray
Protection degree : IP66
Working temperature : -40˚C to +120˚C
Feature :
With high strength ABS, PC refractories and UV added material, the enclosure has beautiful appearance, high plasticity and ruggedness. It is Suitable for terminal boxes, distribution panels, instrument boxes, control boxes, simple and easy to use.

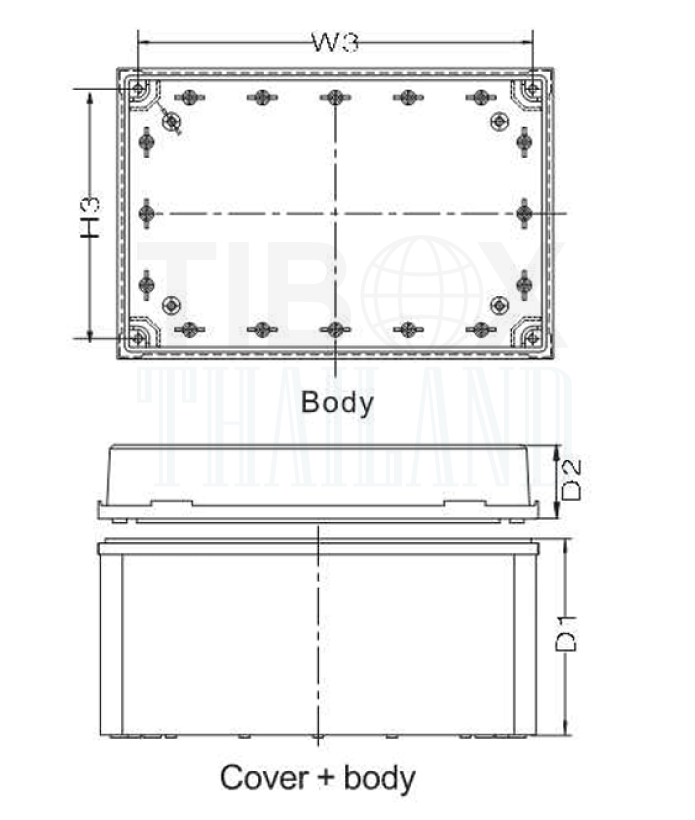

Screw Type | Dimension(mm.) | Mounting Plate | Installation Size(mm.) | ||||
| Grey Door | Clear Door | W x H x D | D1 + D2 | Plastic | Metal | W3 | H3 |
| TJ-KG-2030 | TJ-KT-2030 | 200x300x180 | 130+50 | TJ-2030P | TJ-2030 | 270 | 170 |
| TJ-KG-3030 | TJ-KT-3030 | 300x300x180 | 130+50 | TJ-3030P | TJ-3030 | 270 | 270 |
| TJ-KG-3040 | TJ-KT-3040 | 300x400x180 | 130+50 | TJ-3040P | TJ-3040 | 370 | 270 |
| TJ-KG-3040-1 | TJ-KT-3040-1 | 300x400x210 | 160+5 | TJ-3040P | TJ-3040 | 370 | 270 |
| TJ-KG-4050 | TJ-KT-4050 | 400x500x200 | 150+50 | TJ-3050P | TJ-3050 | 470 | 270 |
| TJ-KG-4060 | TJ-KT-4060 | 400x600x220 | 170+50 | TJ-2030PX2 | TJ-4060 | 570 | 370 |
