TB Series Plastic Enclosure

Material : ABS

Protection degree : IP66

Working temperature : -40˚C to +120˚C

Feature :

Out of the plastic boxes which are selling at present, it's ability and working efficiency, the competitive power is much higher with the low price same as the level of steel box. Product were added the electromagnetic indterference(EMI) and strong point was given to the relevant mechanical protection of electricity, electron and etc.

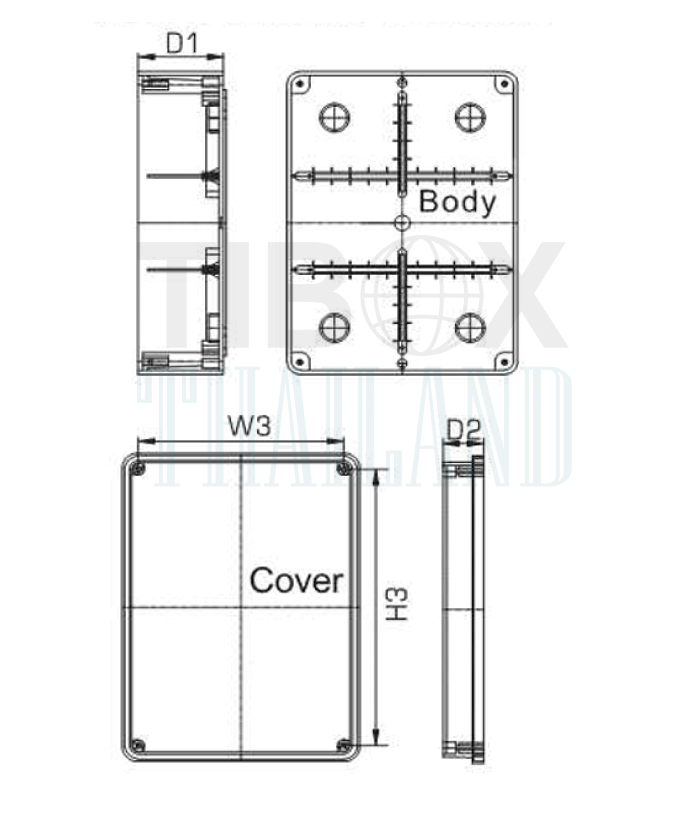

Screw Type		Dimension(mm.)		Mounting Plate	Installation size(mm)
Grey Door	Clear Door	W x H x D	D1 + D2	Metal	W3	H3
TB-AG-0812	TB-AT-0812	80x120x50	40+14	TJ-0812	88	88
TB-AG-1010	TB-AT-1010	100x100x50	40+14	TJ-1010	68	108
TB-AG-1115	TB-AT-1115	110x150x70	49+25	TJ-1115	98	137
TB-AG-1419	TB-AT-1419	140x190x70	51+25	TJ-1419	128	177
TB-AG-1924	TB-AT-1924-1	190x240x90	70+25	TJ-1924	170	226
TB-AG-1924-1	TB-AT-1924-1	190x240x160	70+96	TJ-1924	170	226
TB-AG-2230	TB-AT-2230	220x300x120	76+50	TJ-2230	200	280
TB-AG-2230-1	TB-AT-2230-1	220x300x160	76+90	TJ-2230	200	280
TB-AG-3038	TB-AT-3038	300x380x120	78+50	TJ-3038	281	278
TB-AG-3038-1	TB-AT-3038-1	300x380x183	78+100	TJ-3038	281	278
