TJ Series Industrial Socket Plastic Box

Material : ABS

Protection degree : IP66

Working temperature : -40˚C to +120˚C
Thickness : 5.0 mm

Feature :

High strength ABS material, appearance is beautiful and easy, has the very high plasticity and robustness. Applicable to the outlet box terminal box, distribution board, instrument box, box and control box conbenient for power equipment, dismountable and design unique hinge, up and down or so can be opened.

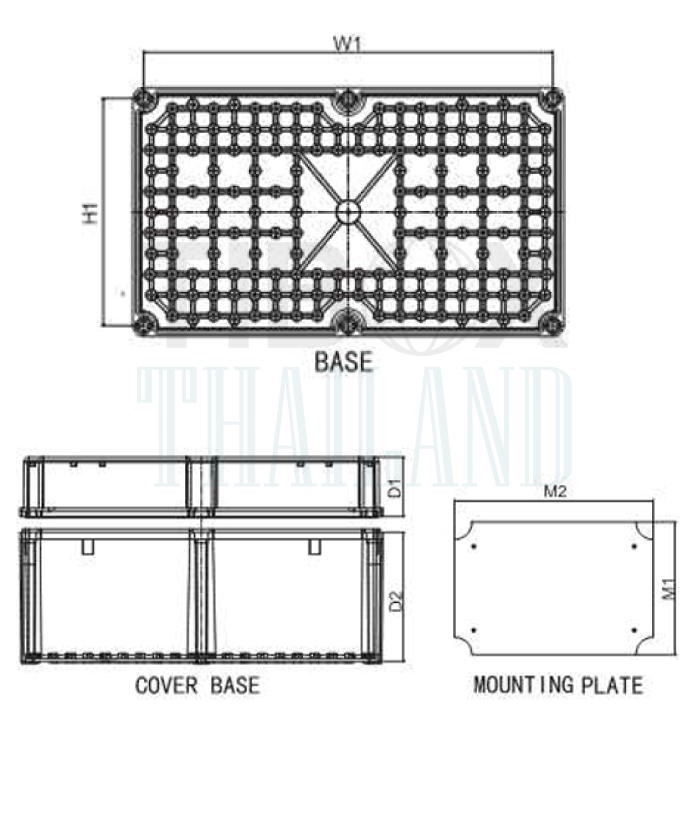

Screw Type	Dimension(mm.)					Plate	Plate Size
Grey Door	W x H x D	W1	H1	D1	D2	Plastic	M1	M2
TJ-AG-2234	220x340x145	314	194	40	105	TJ-2234	198	318
TJ-AG-2730	270x300x145	274	244	40	105	TJ-2730	245	275
TJ-AG-3040	300x400x160	374	274	55	105	TJ-3040	275	375
TJ-AG-2746	270x460x160	434	244	55	105	TJ-2746	245	435
TJ-AG-3052	300x520x160	494	274	55	105	TJ-3052	275	495
TJ-AG-3654	360x540x180	514	334	55	125	TJ-3654	333	513

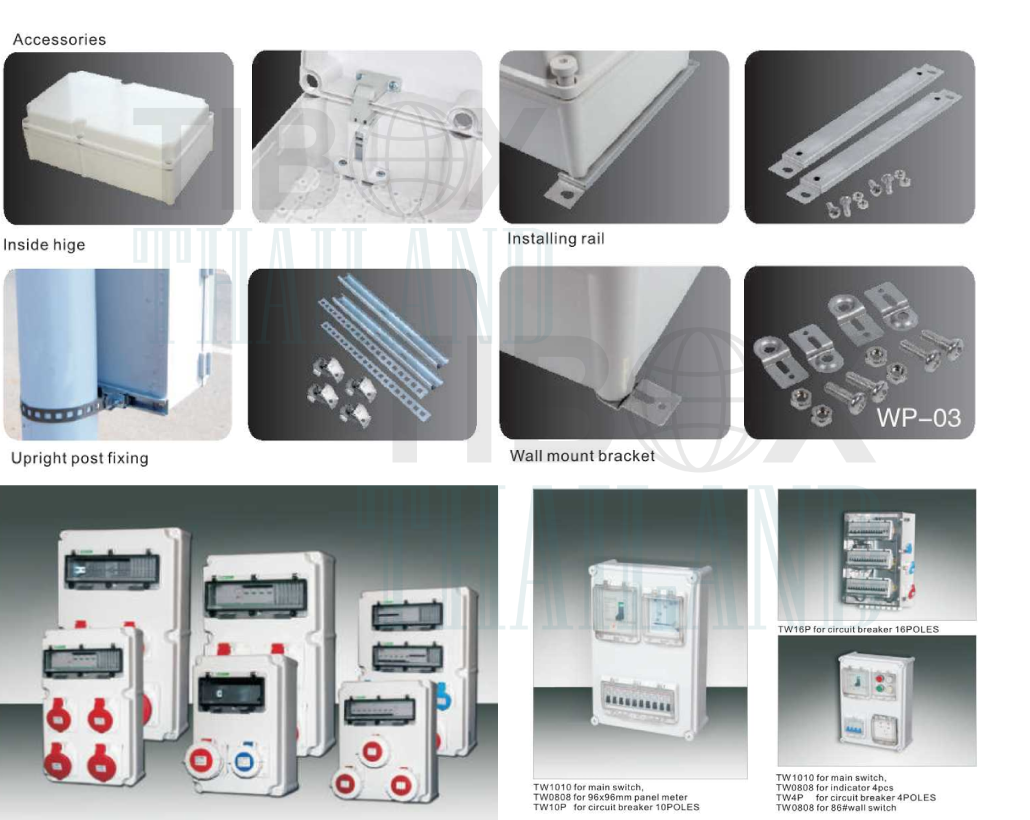

Model	Inside hinge Hinge model	Upright post fixing Hinge Model	Installing rail Hinge model
TJ-AG-2234	HG-05	BG-081	SG-01
TJ-AG-2730	HG-05	BG-082	SG-02
TJ-AG-3040	HG-06	BG-083	SG-03
TJ-AG-2746	HG-06	BG-082	SG-02
TJ-AG-3052	HG-06	BG-083	SG-03
TJ-AG-3654	HG-07	BG-084	SG-04
