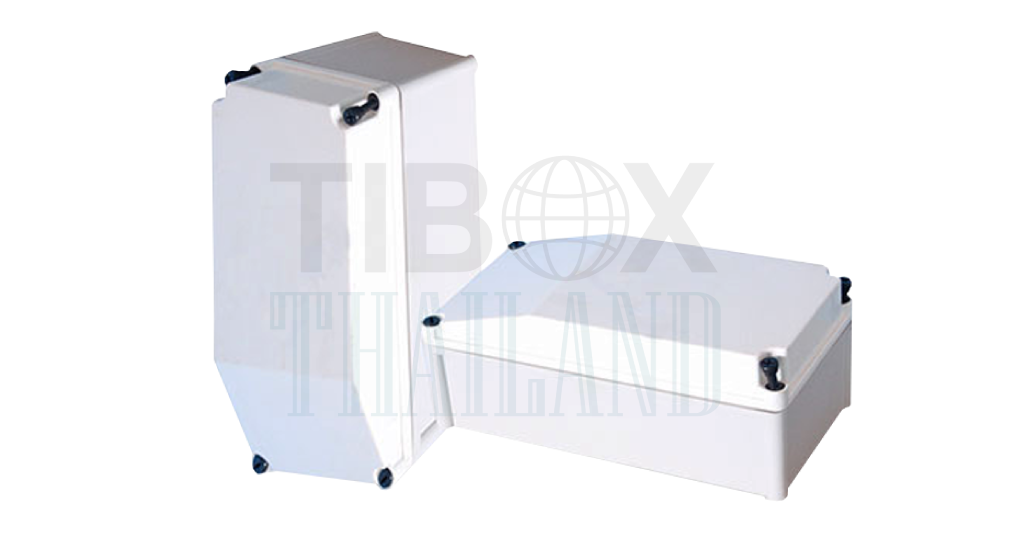

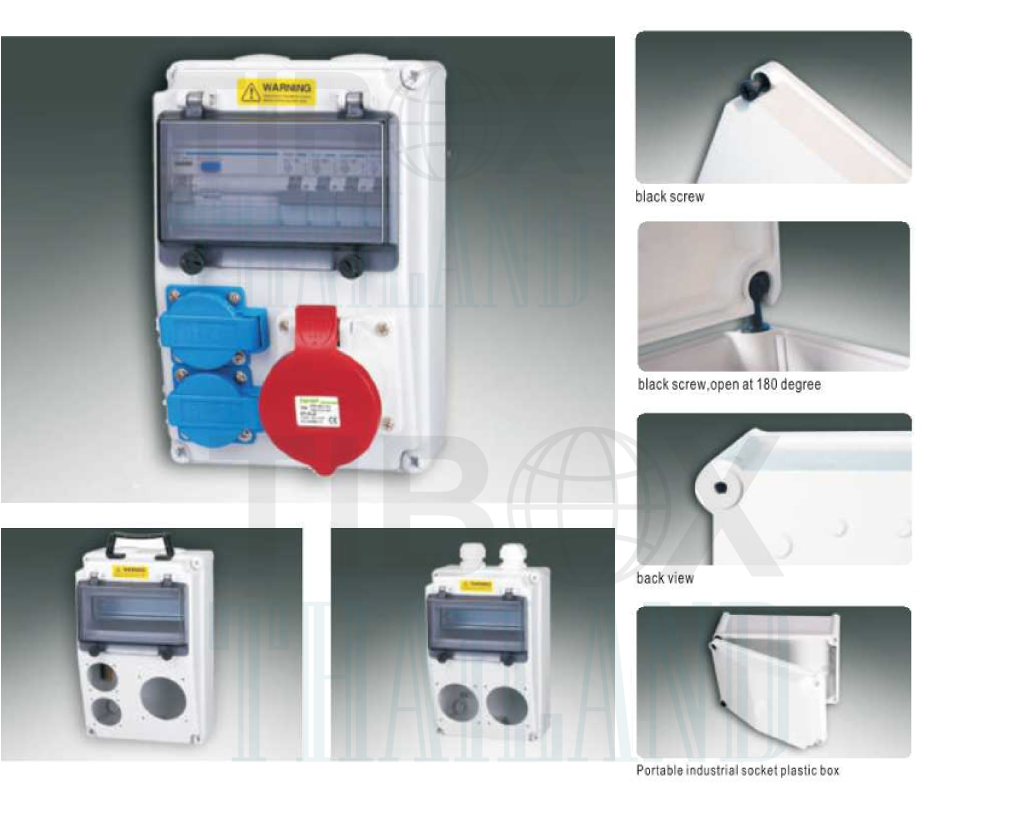

Portable Industrial Socket Plastic Box(Black Screw Type)
Material : ABSProtection degree : IP44 IP67
Working temperature : -40˚C to +120˚C
Feature :
Plastic Enclosure Portable and provide flexible power supply output. Executive standard : DINVDE0623 IE C60309-2 Protection degree: IEC60529 IP44 IP67

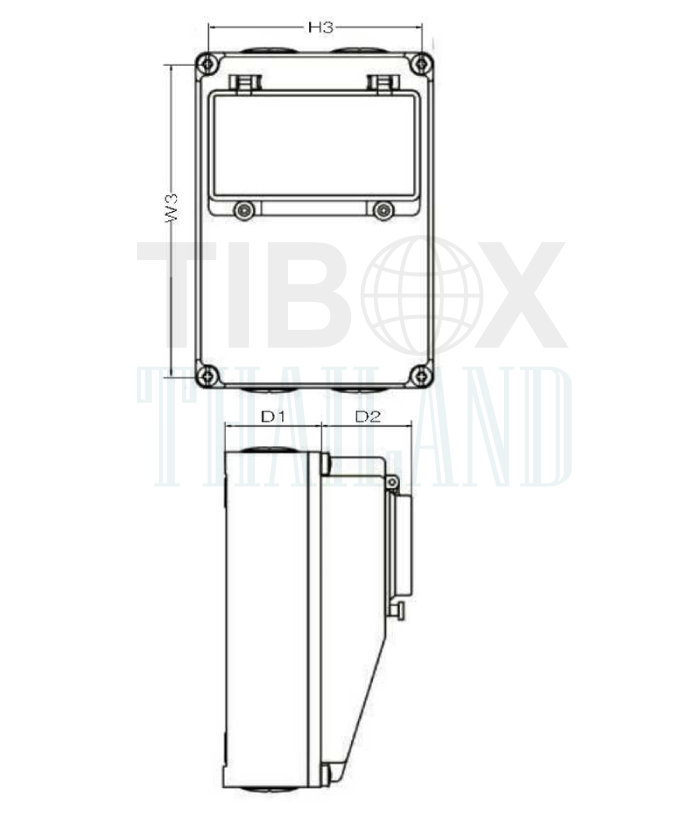

Screw Type | Dimension(mm.) | Mounting Plate | Installation size(mm) | ||||
| Grey Door | Clear Door | W x H x D | D1 + D2 | Plastic | Metal | W3 | H3 |
| TJ-AG-2819X | TJ-AT-2819X | 280x190x150 | 100+50 | TJ-2819P | TJ-2819 | 255 | 165 |
| TJ-AG-2819-1X | TJ-AT-2819-1X | 280x190x200 | 150+50 | TJ-2819P | TJ-2819 | 255 | 165 |
| TJ-AG-3819X | TJ-AT-3819X | 380x190x150 | 100+50 | TJ-3819P | TJ-3819 | 355 | 165 |
| TJ-AG-3819-1X | TJ-AT-3819-1X | 380x190x200 | 150+50 | TJ-3819P | TJ-3819 | 355 | 165 |
