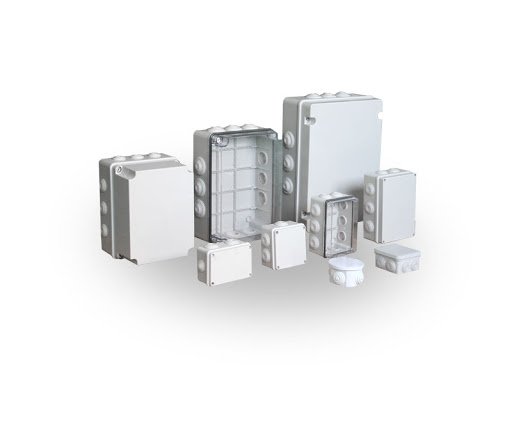

TB-AGR-XXX,TB-ATR-XXX TB Series Plastic Enclosure
Last updated: 23 ก.ย. 2563 | 2067 จำนวนผู้เข้าชม |
Beautiful appearance, excellent processing and stability should be guaranteed by material such as High Intensity ABS,PC,AC polyester assured Flammability material and Glass 30% annexing material. The use is convenient for installation of Terminal Box, THE supply Switchboard, Apparatus Box, Electrical power supply and control box etc.
| Size | Product Model | Plate Model | ||
| W H D | ABS | PC/ABS | Plastic | Metal |
| Cover: Grey ABS Body:Grey ABS | Cover: Transparent PC Body:Grey ABS | |||
| 75 x 75 x 45 | TB-AGR-0606 | TB-ATR-0606 | - | - |
| 89 x 89 x 50 | TB-AGR-0808 | TB-ATR-0808 | - | - |
| 80 x 120 x 50 | TB-AGR-0812 | TB-ATR-0812 | - | TJ-0812 |
| 100 x 100 x 50 | TB-AGR-1010 | TB-ATR-1010 | - | TJ-1010 |
| 110 x 150 x 70 | TB-AGR-1115 | TB-ATR-1115 | - | TJ-1115 |
| 140 x 190 x 70 | TB-AGR-1419 | TB-ATR-1419 | - | TJ-1419 |
| 190 x 240 x 90 | TB-AGR-1924 | TB-ATR-1924 | - | TJ-1924 |
| 190 x 240 x 160 | TB-AGR-1924-1 | TB-ATR-1924-1 | - | TJ-1924 |
| 220 x 300 x 120 | TB-AGR-2230 | TB-ATR-2230 | - | TJ-2230 |
| 220 x 300 x 160 | TB-AGR-2230-1 | TB-ATR-2230-1 | - | TJ-2230 |
| 300 x 380 x 120 | TB-AGR-3038 | TB-ATR-3038 | - | TJ-3038 |
| 300 x 380 x 160 | TB-AGR-3038-1 | TB-ATR-3038-1 | - | TJ-3038 |
